| General Introduction: | |

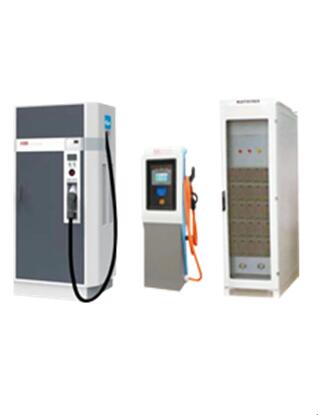

Types of DC Charging Piles: One-in-one and Two-in-one. | |
Input power supply of DC charging pile: DC charging pile has 380V AC input because of its large output power. | |
Output power of DC charging pile: commonly used specifications: 30KW, 40KW, 60KW, 90KW, 120KW, 150KW, 180KW, 240KW. | |
The charging interface of DC charging pile: the output interface is the international standard 9-core plug; the output port is divided into two kinds: single gun and double gun. | |
The shell material of DC charging pile: DC charging pile is usually metal shell. |
Application occasion: | |
| DC charging pile: It is mainly suitable for bus station, taxi charging station and large parking lot. | |
| The development trend is community, large banks and supermarkets. | |
Specification parameter: | |
Input Voltage: 380VAC + 15% | |
Output Voltage: 220-500 VDC, 350-750 VDC | |
Output current: 80A, 100A, 125A, 160A, 200A, 250A | |
Rated power: 40KW, 60KW, 90KW, 120KW, 150KW, 180KW, 240KW | |
Ambient temperature: - 25 +55 | |
Relative humidity: 5%-95% | |
Altitude: 2500M | |
Protection Level: IP54 | |
Full functions: leakage protection, over-voltage protection, overload protection, lightning protection, temperature protection, RS232 communication, CAN communication, color display screen, 3G/4G network and other functions. | |
