| General Introduction: | |

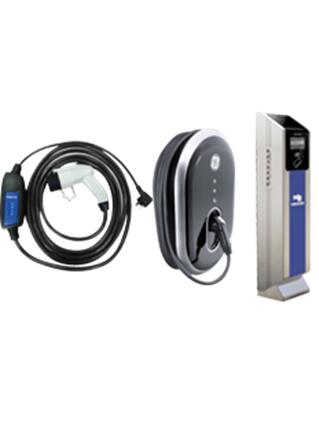

| Types of AC charging piles: portable, wall-mounted and floor-mounted. | |
| Input power supply of AC charging pile: | |
| ● Input 220VAC AC power supply, mainly applicable to domestic; | |
| ● Input 380VAC AC power supply, mainly for Tesla. | |
| The output power of AC charging pile: | |
| ●The input 220V AC charging pile generally has 3.5KW, 7KW and 14KW; | |
| ●The AC charging piles with 380V input usually have 11 KW, 22 KW and 44 KW. | |
The charging interface of AC charging pile: the output interface is the standard 7-core plug or socket stipulated by international standards. | |
| The output is divided into two types: single shot and double shot. The shell material of AC charging pile: portable, wall-mounted plastic shell and metal shell; Ground charging piles are usually metal enclosures. | |
The shell material of AC charging pile: portable, wall-mounted plastic shell and metal shell. Ground charging piles are usually metal enclosures. | |
Application occasion: | |
| Portable Charging Box: Mainly automobile manufacturers attached to the user, can be used in any standard 220V socket. | |
| Wall-mounted charging piles: mainly applicable to residential areas, parking lots, supermarkets, hotels, banks and other centralized parking areas. | |
| Portable Charging Box: It is mainly suitable for centralized parking areas such as residential areas, parking lots, large shopping malls, supermarkets, hotels, banks, etc. | |
Specification parameter: | |
| Input Voltage: 220VAC + 15% | |
| Output Voltage: 220VAC + 15% | |
| Output current: 16A/32A | |
| Rated power: 3.5KW/7KW | |
| Ambient temperature: - 25 +55 | |
| Altitude: 2500M | |
| Relative humidity: 5%-95% | |
| Protection level: indoor IP32 outdoor IP54 | |
| Functions of the whole machine: leakage protection, over-voltage protection, overload protection, lightning protection, temperature protection, RS232 communication, display screen, 3G/4G network and other functions. |
